Wholesale Price Api 600 Cast Steel Gate Valve - Forged Steel Globe Valve – Newsway Detail:

Forged Steel Globe Valve

Key works: api602, forged steel, a105, globe, valve, class 800, sw, npt, bw.

PRODUCT RANGE:

Sizes: NPS 1/2 to NPS2 (DN15 to DN50)

Pressure Range: Class 150 to Class 800, Class 1500 to Class 2500

MATERIALS:

Forged (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5,)

STANDARD

Design & manufacture API 602,ASME B16.34,BS 5352
Face-to-face MFG’S
End Connection - Flange Ends to ASME B16.5
- Socket Weld Ends to ASME B16.11
- Butt Weld Ends to ASME B16.25
- Screwed Ends to ANSI/ASME B1.20.1
Test & inspection API 598
Fire safe design API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848
Other PMI, UT, RT, PT, MT

Design Features:

Forged Steel,Outside Screw and Yoke (OS&Y),Rising Stem,
2.Non-Rising Handwheel,Integral Backseat,
3.Solid Wedge,Renewable Seat Rings,Sprial Wound Gasket,
4.Reduced Bore or Full Port,
5.Socket Welded,Threaded,Butt Welded,Flanged End
6.SW, NPT, RF or BW
7.Bolted Bonnet, Welded Bonnet or Pressure Sealed Bonnet

Structure of Forged Steel Globe Valve

1



NSW| Newsway Valve’s China Forged Steel Globe Valve: Working Principle of Forged Steel Flanged Globe Valve The stem axis of the globe valve is perpendicular to the sealing surface of the valve seat. The opening or closing stroke of the valve stem is relatively short, and it has a very reliable shut-off action, making this valve very suitable for medium shut-off or regulation and throttling. Once the disc of the globe valve is in the open state, the contact between its seat and the sealing surface of the disc is no longer in contact, and has a very reliable cut-off action, so this valve is very suitable for cutting or adjusting the medium. stream usage. Once the globe valve is in the open state, there is no longer any contact between its seat and the sealing surface of the disc, so the mechanical wear of its sealing surface is small, because the seat and disc of most globe valves are relatively easy to repair or replace. It is not necessary to disassemble the whole valve from the pipeline when sealing the element, which is very suitable for the occasion where the valve and pipeline are welded into one. The flow direction of the medium changes when passing through this type of valve, so the flow resistance of the globe valve is higher than that of other valves.

If you need more details about valves please contact NSW(newsway valve) sales department

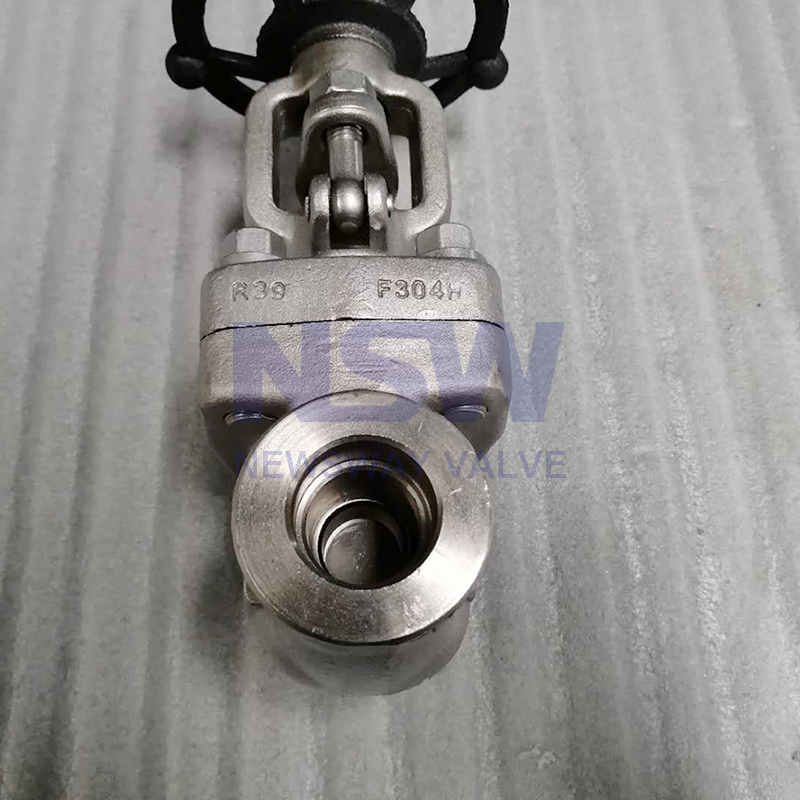

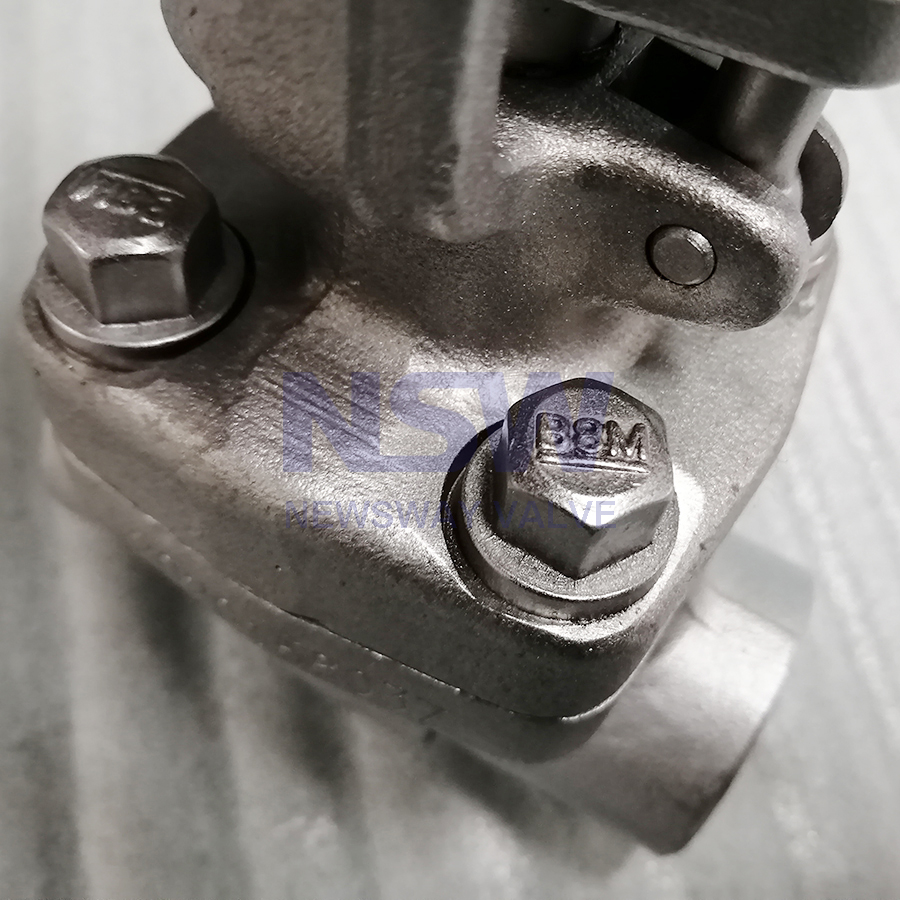

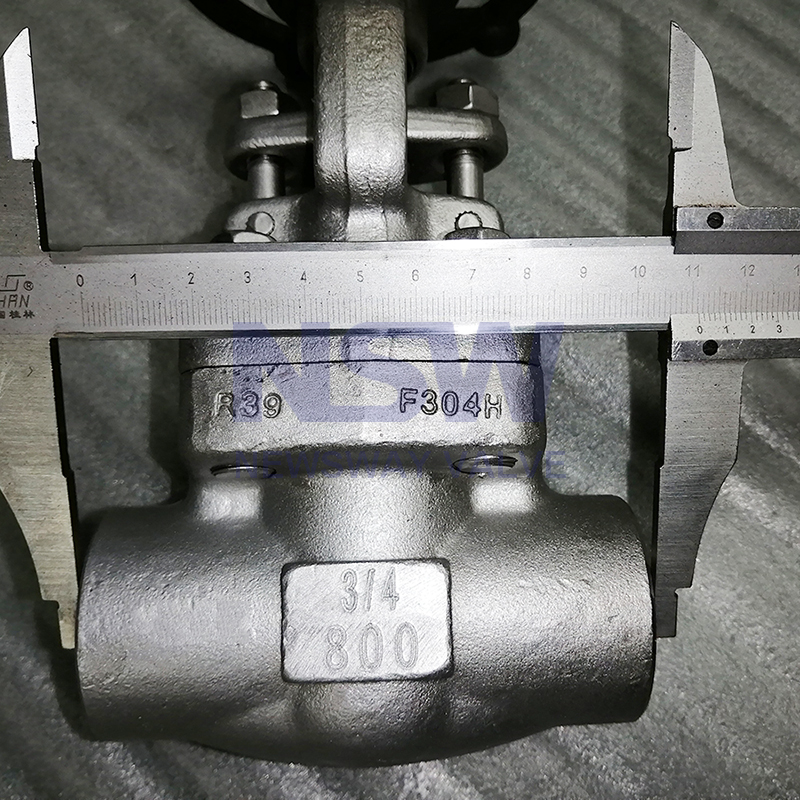

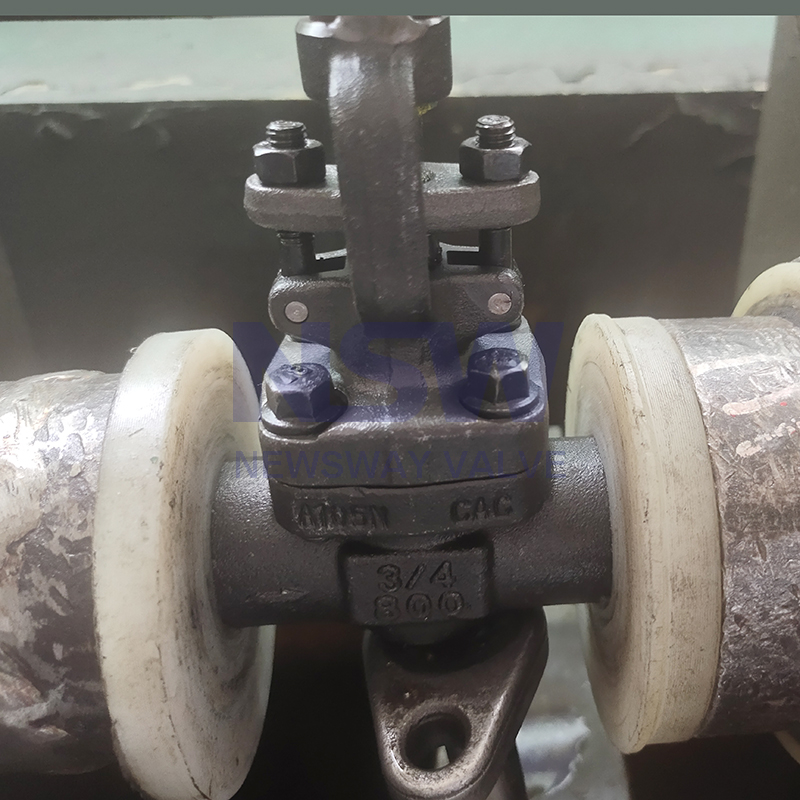

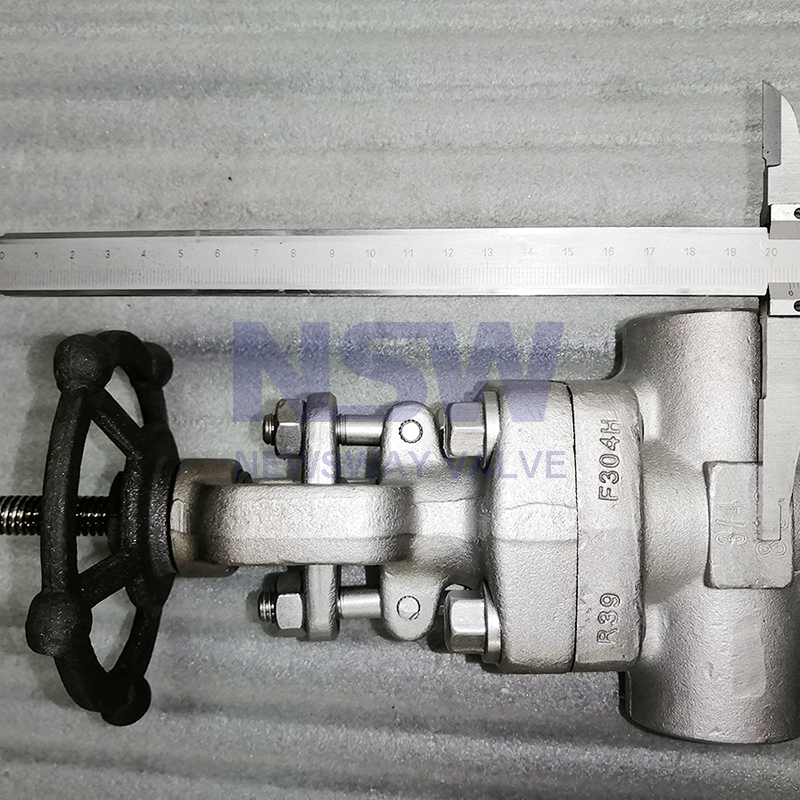

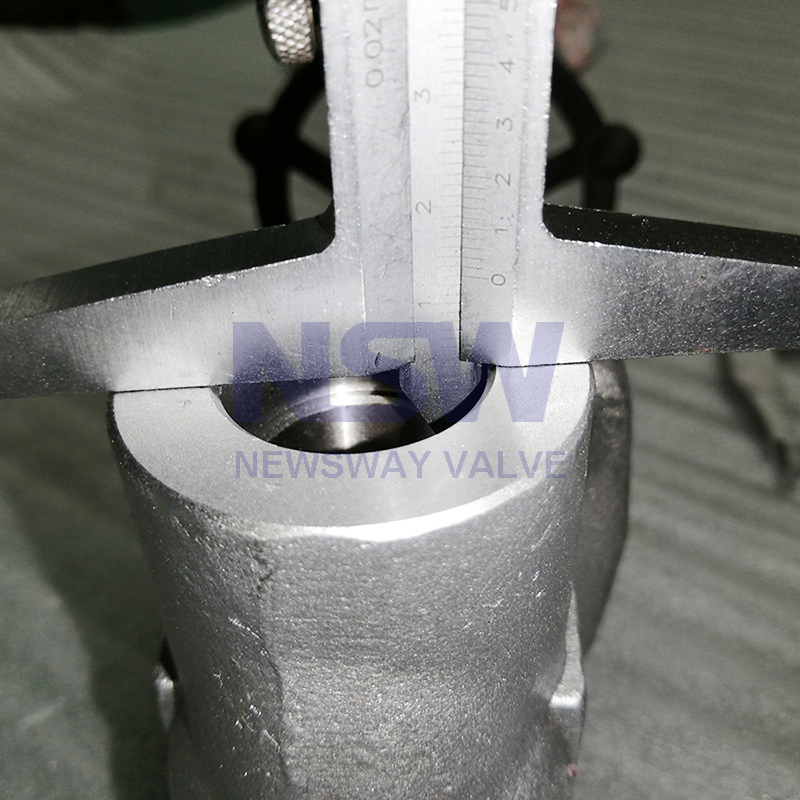

Product detail pictures:

Wholesale Price Api 600 Cast Steel Gate Valve - Forged Steel Globe Valve – Newsway detail pictures

Wholesale Price Api 600 Cast Steel Gate Valve - Forged Steel Globe Valve – Newsway detail pictures

Wholesale Price Api 600 Cast Steel Gate Valve - Forged Steel Globe Valve – Newsway detail pictures

Wholesale Price Api 600 Cast Steel Gate Valve - Forged Steel Globe Valve – Newsway detail pictures

Wholesale Price Api 600 Cast Steel Gate Valve - Forged Steel Globe Valve – Newsway detail pictures

Wholesale Price Api 600 Cast Steel Gate Valve - Forged Steel Globe Valve – Newsway detail pictures

Wholesale Price Api 600 Cast Steel Gate Valve - Forged Steel Globe Valve – Newsway detail pictures

Wholesale Price Api 600 Cast Steel Gate Valve - Forged Steel Globe Valve – Newsway detail pictures

Wholesale Price Api 600 Cast Steel Gate Valve - Forged Steel Globe Valve – Newsway detail pictures


Related Product Guide:
Cooperation

Our target should be to consolidate and enhance the top quality and service of current goods, in the meantime frequently create new products to satisfy diverse customers' calls for for Wholesale Price Api 600 Cast Steel Gate Valve - Forged Steel Globe Valve – Newsway , The product will supply to all over the world, such as: Mali, Provence, Australia, By integrating manufacturing with foreign trade sectors, we can provide total customer solutions by guaranteeing the delivery of right products to the right place at the right time, which is supported by our abundant experiences, powerful production capability, consistent quality, diversified products and the control of the industry trend as well as our maturity before and after sales services. We'd like to share our ideas with you and welcome your comments and questions.

Newsway Valves Materials

NSW valve body and trim material can be offered in Forged type and Casting type. Next to stainless and carbon steel material, we also manufacture valves in special materials such as titanium, nickel alloys, HASTELLOY®*, INCOLOY®, MONEL®, Alloy 20, super-duplex, corrosion resistant alloys and urea grade materials.

Available materials

Tradename UNS nr. Werkstoff nr. Forging Casting
Carbon steel K30504 1.0402 A105 A216 WCB
Carbon steel   1.046 A105N
Low Temp Carbon steel K03011 1.0508 A350 LF2 A352 LCB
High Yield steel K03014   A694 F60
3 1/2 Nickel steel K32025 1.5639 A350 LF3 A352 LC3
5 Chrome, 1/2 Moly K41545 1.7362 A182 F5 A217 C5
1 1/4 Chrome, 1/2 Moly K11572 1.7733 A182 F11 A217 WC6
  K11597 1.7335
2 1/4 Chrome, 1/2 Moly K21590 1.738 A182 F22 A217 WC9
9 Chrome, 1 Moly K90941 1.7386 A182 F9 A217 CW6
X 12 Chrome, 091 Moly K91560 1.4903 A182 F91 A217 C12
13 Chrome S41000   A182 F6A A351 CA15
17-4PH S17400 1.4542 A564 630
254 SMo S31254 1.4547 A182 F44 A351 CK3MCuN
304 S30400 1.4301 A182 F304 A351 CF8
304L S30403 1.4306 A182 F304L A351 CF3
310S S31008 1.4845 A182 F310S A351 CK20
316 S31600 1.4401 A182 F316 A351 CF8M
  S31600 1.4436
316L S31603 1.4404 A182 F316L A351 CF3M
316Ti S31635 1.4571 A182 F316Ti
317L S31703 1.4438 A182 F317L A351CG8M
321 S32100 1.4541 A182 F321
321H S32109 1.4878 A182 F321H
347 S34700 1.455 A182 F347 A351 CF8C
347H S34709 1.4961 A182 F347H
410 S41000 1.4006 A182 F410
904L N08904 1.4539 A182 F904L
Carpenter 20 N08020 2.466 B462 N08020 A351 CN7M
Duplex 4462 S31803 1.4462 A182 F51 A890 Gr 4A
SAF 2507 S32750 1.4469 A182 F53 A890 Gr 6A
Zeron 100 S32760 1.4501 A182 F55 A351 GR CD3MWCuN
Ferralium® 255 S32550 1.4507 A182 F61
Nicrofer 5923 hMo N06059 2.4605 B462 N06059
Nickel 200 N02200 2.4066 B564 N02200
Nickel 201 N02201 2.4068 B564 N02201
Monel® 400 N04400 2.436 B564 N04400 A494 M35-1
Monel® K500 N05500 2.4375 B865 N05500
Incoloy® 800 N08800 1.4876 B564 N08800
Incoloy® 800H N08810 1.4958 B564 N08810
Incoloy® 800HT N08811 1.4959 B564 N08811
Incoloy® 825 N08825 2.4858 B564 N08825
Inconel® 600 N06600 2.4816 B564 N06600 A494 CY40
Inconel® 625 N06625 2.4856 B564 N06625 A494 CW 6MC
Hastelloy® B2 N10665 2.4617 B564 N10665 A494 N 12MV
Hastelloy® B3 N10675 2.46 B564 N10675
Hastelloy® C22 N06022 2.4602 B574 N06022 A494 CX2MW
Hastelloy® C276 N10276 2.4819 B564 N10276
Hastelloy® C4 N06455 2.461 B574 N06455
Titanium GR. 1 R50250 3.7025 B381 F1 B367 C1
Titanium GR. 2 R50400 3.7035 B381 F2 B367 C2
Titanium GR. 3 R50550 3.7055 B381 F3 B367 C3
Titanium GR. 5 R56400 3.7165 B381 F5 B367 C5
Titanium GR. 7 R52400 3.7235 B381 F7 B367 C7
Titanium GR. 12 R53400 3.7225 B381 F12 B367 C12
Zirconium® 702 R60702   B493 R60702
Zirconium® 705 R60705   B493 R60705
