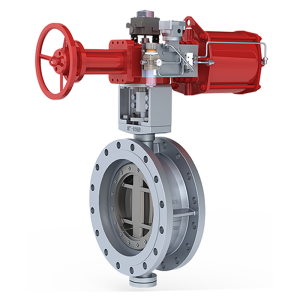

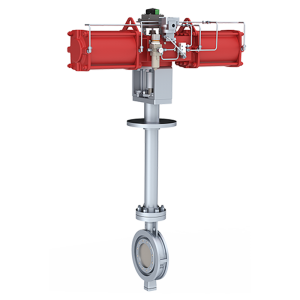

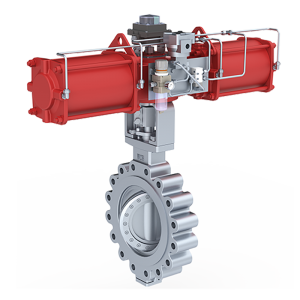

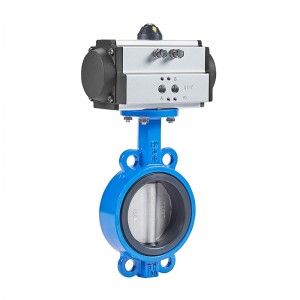

Pneumatic actuator butterfly valve

Pneumatic butterfly valve is composed of a pneumatic actuator and a butterfly valve. Pneumatic actuators often use rack and pinion or fork type, with two types: single acting and double acting. Butterfly valves can use structures such as center line, double eccentric, triple eccentric, and high-performance.

Chinese name pneumatic butterfly valve

Application areas: food, chemical, petroleum, electricity, etc

Valve body materials: gray cast iron, ductile iron, carbon steel, stainless steel, duplex stainless steel, copper contract, Hastelloy alloy and other special alloy steels.

Applicable temperature: As the material of the valve body is used, the temperature changes

Functional use: switch cut-off, proportional adjustment, emergency cut-off

Applicable media: liquids, gases, powders, and other media

Selection of attachments

(1) The accessories of pneumatic butterfly valves mainly include: locator, converter, relay, booster valve, holding valve, pressure reducing valve, filter, oil mist eliminator, travel switch, position transmitter, solenoid valve, and handwheel mechanism.

(2) The attachment serves as a supplementary function and ensures the operation of the valve. Add what is necessary, and do not add what is unnecessary. Adding accessories unnecessarily will increase prices and reduce reliability.

(3) The main function of a locator is to increase output force and action speed. When these functions are not needed, they can be omitted. It is better to have a locator.

(4) For fast response systems, do not let the valve move too quickly, and choose a converter.

(5) Strict explosion-proof applications, optional: electrical converter+pneumatic locator.

(6) Electromagnetic valves should be selected with reliable products to prevent them from not acting when required.

(7) It is recommended not to use a handwheel mechanism in important occasions to prevent human error.

(8) It is best for the manufacturer to provide and assemble the supply on the valve to ensure the reliability of the system and assembly connection.

(9) When placing an order, the name, model, specifications, input signal, output signal, etc. of the accessories should be provided.

(10) Once again, please pay attention to the importance of these “little things”, especially reliability.

Newsway Valves Materials

NSW valve body and trim material can be offered in Forged type and Casting type. Next to stainless and carbon steel material, we also manufacture valves in special materials such as titanium, nickel alloys, HASTELLOY®*, INCOLOY®, MONEL®, Alloy 20, super-duplex, corrosion resistant alloys and urea grade materials.

Available materials
