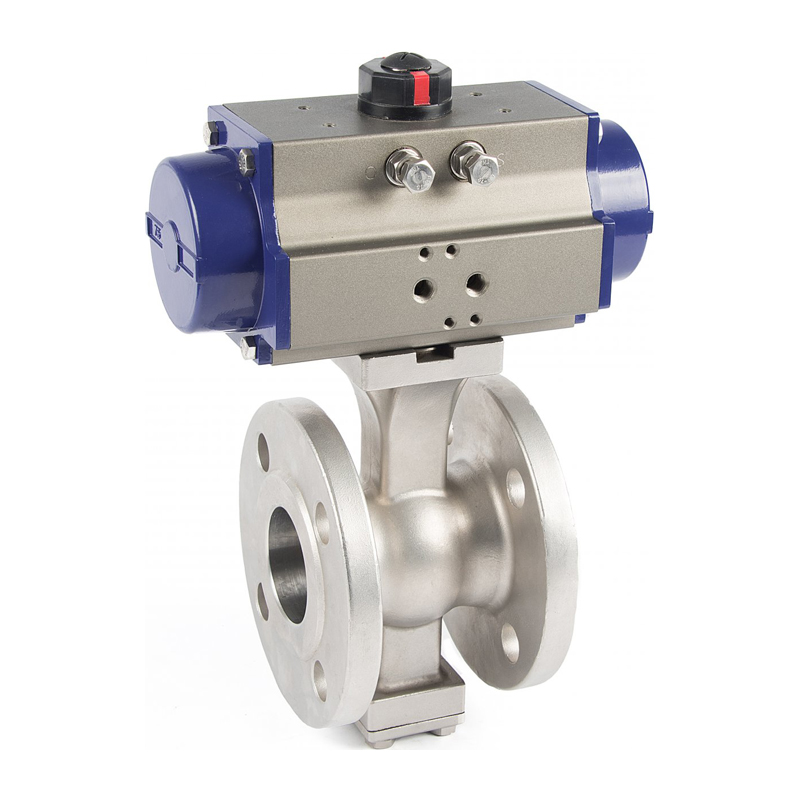

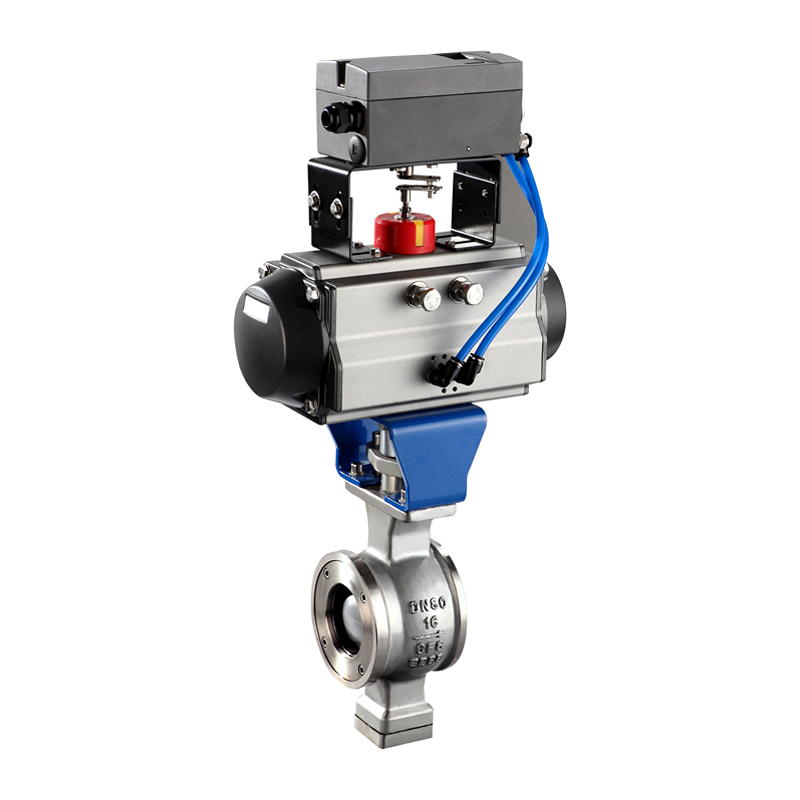

SEGMENTED BALL VALVE (V TYPE BALL VALVE)
PRODUCT RANGE:
Sizes: NPS 1 to NPS 20
Pressure Range: Class 150 to Class 600
Flange Connection: Wafer, Flange (RF, FF, RTJ)
MATERIALS:
Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2) Monel, Inconel, Hastelloy
STANDARD
Design & manufacture | ASME B16.34 |
Face-to-face | -Flange: ANSI/ISA 75.08.02 (ISA S75.04) / IEC 60534-3-2 |
-Wafer: NSW MFG’S Standard | |
End Connection | ASME B16.5, EN 1092-1 |
Test & inspection | API 598, ANSI FCI 70-2 |
Fire safe design | API 6FA, API 607 |
Also available per | NACE MR-0175, NACE MR-0103, ISO 15848 |
Other | PMI, UT, RT, PT, MT |
Design Features:
1. Preeminent performance of adjustment control
The ball is of “V”pattern.At any position from full open to full close,it always keeps the standard geometry.The large adjustable extent is from 100:1 to 200:1,the CV curve of discharge characteristic is similar to the percentage curve,which may realize the precise control of the flow.
2. One piece body
One piece integral body,the strength is high,stress deformation resistance is strong,has no central flange,confinement reliability is improved,has no bending transition at the flow passage,not accumulate,not block,has little influence upon the fluid.
3. Eliable seat sealing
The sealing surface build-up welding is handled by hard facing and employ the advanced seat grinding technology and griding ball technology to make V type ball valve have reliable sealing performance which can achieve the V sealing grade of ANSI B16.104 specified.The special requirement can achieve VI grade.
4. Ball
The ball hard surface handled by STL,tungsten,etc.Both the two ends are V pattern,which is easy to precise control for flow also can realize the shearing action for the fluid containing cellulosic,the high-viscosity fluid containing solid particles when shutting.
5. Sealing packing
The stem adopts the adjustable jam type packing of V type PTFE or RPPL.Ensure that has reliable sealing and no out leakage under the middle and high temperature.
V Balls of SEGMENTED BALL VALVE (V TYPE BALL VALVE)
If you need more details about valves please contact NSW(newsway valve) sales department
Product detail pictures:
Related Product Guide:
Cooperation
We now have a specialist, efficiency workforce to deliver excellent service for our purchaser. We always follow the tenet of customer-oriented, details-focused for OEM/ODM Manufacturer Sanitary Stainless Steel Ball Valves - Segment Ball Valve – Newsway , The product will supply to all over the world, such as: Qatar, Costa rica, Turkey, With strong technical strength and advanced production equipment, and SMS people purposefully , qualified, dedicated spirit of enterprise. Enterprises took the lead through the ISO 9001:2008 international quality management system certification, CE certification EU ; CCC.SGS.CQC other related product certification. We look forward to reactivating our company connection.
Newsway Valves Materials
NSW valve body and trim material can be offered in Forged type and Casting type. Next to stainless and carbon steel material, we also manufacture valves in special materials such as titanium, nickel alloys, HASTELLOY®*, INCOLOY®, MONEL®, Alloy 20, super-duplex, corrosion resistant alloys and urea grade materials.
Available materials
Tradename | UNS nr. | Werkstoff nr. | Forging | Casting |
Carbon steel | K30504 | 1.0402 | A105 | A216 WCB |
Carbon steel | 1.046 | A105N | ||
Low Temp Carbon steel | K03011 | 1.0508 | A350 LF2 | A352 LCB |
High Yield steel | K03014 | A694 F60 | ||
3 1/2 Nickel steel | K32025 | 1.5639 | A350 LF3 | A352 LC3 |
5 Chrome, 1/2 Moly | K41545 | 1.7362 | A182 F5 | A217 C5 |
1 1/4 Chrome, 1/2 Moly | K11572 | 1.7733 | A182 F11 | A217 WC6 |
K11597 | 1.7335 | |||
2 1/4 Chrome, 1/2 Moly | K21590 | 1.738 | A182 F22 | A217 WC9 |
9 Chrome, 1 Moly | K90941 | 1.7386 | A182 F9 | A217 CW6 |
X 12 Chrome, 091 Moly | K91560 | 1.4903 | A182 F91 | A217 C12 |
13 Chrome | S41000 | A182 F6A | A351 CA15 | |
17-4PH | S17400 | 1.4542 | A564 630 | |
254 SMo | S31254 | 1.4547 | A182 F44 | A351 CK3MCuN |
304 | S30400 | 1.4301 | A182 F304 | A351 CF8 |
304L | S30403 | 1.4306 | A182 F304L | A351 CF3 |
310S | S31008 | 1.4845 | A182 F310S | A351 CK20 |
316 | S31600 | 1.4401 | A182 F316 | A351 CF8M |
S31600 | 1.4436 | |||
316L | S31603 | 1.4404 | A182 F316L | A351 CF3M |
316Ti | S31635 | 1.4571 | A182 F316Ti | |
317L | S31703 | 1.4438 | A182 F317L | A351CG8M |
321 | S32100 | 1.4541 | A182 F321 | |
321H | S32109 | 1.4878 | A182 F321H | |
347 | S34700 | 1.455 | A182 F347 | A351 CF8C |
347H | S34709 | 1.4961 | A182 F347H | |
410 | S41000 | 1.4006 | A182 F410 | |
904L | N08904 | 1.4539 | A182 F904L | |
Carpenter 20 | N08020 | 2.466 | B462 N08020 | A351 CN7M |
Duplex 4462 | S31803 | 1.4462 | A182 F51 | A890 Gr 4A |
SAF 2507 | S32750 | 1.4469 | A182 F53 | A890 Gr 6A |
Zeron 100 | S32760 | 1.4501 | A182 F55 | A351 GR CD3MWCuN |
Ferralium® 255 | S32550 | 1.4507 | A182 F61 | |
Nicrofer 5923 hMo | N06059 | 2.4605 | B462 N06059 | |
Nickel 200 | N02200 | 2.4066 | B564 N02200 | |
Nickel 201 | N02201 | 2.4068 | B564 N02201 | |
Monel® 400 | N04400 | 2.436 | B564 N04400 | A494 M35-1 |
Monel® K500 | N05500 | 2.4375 | B865 N05500 | |
Incoloy® 800 | N08800 | 1.4876 | B564 N08800 | |
Incoloy® 800H | N08810 | 1.4958 | B564 N08810 | |
Incoloy® 800HT | N08811 | 1.4959 | B564 N08811 | |
Incoloy® 825 | N08825 | 2.4858 | B564 N08825 | |
Inconel® 600 | N06600 | 2.4816 | B564 N06600 | A494 CY40 |
Inconel® 625 | N06625 | 2.4856 | B564 N06625 | A494 CW 6MC |
Hastelloy® B2 | N10665 | 2.4617 | B564 N10665 | A494 N 12MV |
Hastelloy® B3 | N10675 | 2.46 | B564 N10675 | |
Hastelloy® C22 | N06022 | 2.4602 | B574 N06022 | A494 CX2MW |
Hastelloy® C276 | N10276 | 2.4819 | B564 N10276 | |
Hastelloy® C4 | N06455 | 2.461 | B574 N06455 | |
Titanium GR. 1 | R50250 | 3.7025 | B381 F1 | B367 C1 |
Titanium GR. 2 | R50400 | 3.7035 | B381 F2 | B367 C2 |
Titanium GR. 3 | R50550 | 3.7055 | B381 F3 | B367 C3 |
Titanium GR. 5 | R56400 | 3.7165 | B381 F5 | B367 C5 |
Titanium GR. 7 | R52400 | 3.7235 | B381 F7 | B367 C7 |
Titanium GR. 12 | R53400 | 3.7225 | B381 F12 | B367 C12 |
Zirconium® 702 | R60702 | B493 R60702 | ||
Zirconium® 705 | R60705 | B493 R60705 |
