Ball valves and gate valves are two common types of valves, and they have significant differences in structure, working principle, and use scenarios. Here’s a breakdown of the differences:
First, structural differences

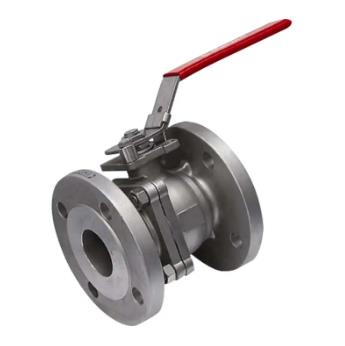

1. Ball valve:
- Spool: The ball with a hole in the middle is used as the valve center, and the ball rotates to control the opening and closing of the valve.
- Seal: The ball and the seat form a seal, sealing performance is good, suitable for high pressure, high temperature and other harsh environment.
- Operation: Rotate the ball 90 degrees to realize the opening and closing of the valve, easy and fast operation.
2. Gate valve:
- Valve core: The valve body has a flat plate (ram) perpendicular to the flow direction of the medium, which controls the opening and closing of the valve by lifting the ram.
- Seal: A seal is formed between the gate and the seat, but the sealing performance of the gate valve is greatly affected by the processing accuracy of the gate and the seat.
Operation: The opening and closing of the gate valve requires the gate to move up and down along the flow direction of the medium, and the operation is relatively slow and laborious.
Second, the working principle
1. Ball valve:
- The opening and closing part (ball) is driven by the valve stem and rotates around the ball valve axis, and the opening and closing of the valve can be realized by rotating 90 degrees.
In the closed state, the ball valve forms a metal-to-metal seal between the ball and the seat, and the sealing performance is reliable.
2. Gate valve:
- The gate moves up and down along the flow direction of the medium. The valve opens when the gate rises and closes when the gate falls.
- When the gate valve is closed, a seal is formed between the gate plate and the seat, but the sealing performance is greatly affected by the processing accuracy of the gate plate and the seat.
Third, use scenario
1. Ball valve:
- Widely used in petroleum, chemical, power generation, paper making, nuclear energy, aviation, rocket and other sectors as well as the daily life of the public.
- Especially suitable for fast opening and closing, high sealing performance requirements, medium pressure is large occasions.
2. Gate valve:
- It is mainly used to cut off the flow of media, and is more common in the main control valves of heating pipes and water supply and drainage pipes.
- The gate valve has small resistance and tight closing, but the opening and closing speed is slow, and it is not suitable for occasions where frequent opening and closing are required.
Fourth, other differences
1. Adjustment performance:
Ball valve adjustment performance is relatively poor, mainly used to cut off or connect the medium in the pipeline.
- Although the gate valve has a certain adjustment function, it is susceptible to media erosion and vibration when it is partially opened, resulting in damage to the sealing surface.
2. Maintenance difficulty:
- Ball valve structure is relatively simple, reliable sealing performance, more convenient maintenance.
- The structure of gate valve is relatively complex, and the seat groove is easy to deposit solid substances, which is difficult to maintain.
In summary, there are obvious differences between ball valves and gate valves in terms of structure, working principle and use scenario. When selecting the valve, the appropriate valve type should be selected according to the specific working conditions and medium requirements.
