What is Shutdown Valve (SDV)

What is Shutdown Valve

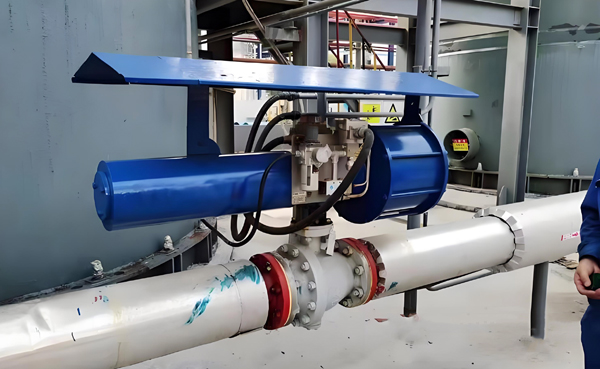

 A shutdown valve (also referred to as SDV or Emergency Shutdown Valve, ESV, ESD, or ESDV) is an actuated valve designed to stop the flow of a hazardous fluid upon the detection of a dangerous event.

his provides protection against possible harm to people, equipment or the environment. Shutdown valves form part of a Safety Instrumented System. The process of providing automated safety protection upon the detection of a hazardous event is called Functional Safety.

Types of valve

For fluids, metal seated ball valves are used as shut-down valves (SDV’s). Use of metal seated ball valves leads to overall lower costs when taking into account lost production and inventory, and valve repair costs resulting from the use of soft seated ball valves which have a lower initial cost.

Straight-through flow valves, such as rotary-shaft ball valves, are typically high-recovery valves. High recovery valves are valves that lose little energy due to little flow turbulence. Flow paths are straight through. Rotary control valves, butterfly valve and ball valves are good examples.

For air intake shut down, two distinct types are commonly utilized, i.e. butterfly valves and swing gate or guillotine valves. Because diesel engines ignite fuel using compression instead of an electronic ignition, shutting off the fuel source to a diesel engine will not necessarily stop the engine from running.

When an external hydrocarbon, such as methane gas, is present in the atmosphere, it can be sucked into a diesel engine causing overspeed or over revving, potentially leading to a catastrophic failure and explosion. When actuated, ESD valves stop the flow of air and prevent these failures.

Types of Actuation

As shutdown valves form part of a SIS.  It is necessary to operate the valve by means of an actuator.

These actuators are normally fail safe fluid power type.

Typical examples of these are:

Pneumatic cylinder

Hydraulic cylinder

Electro-hydraulic actuator

In addition to the fluid type, actuators also vary in the manner in which the energy is stored to operate the valve on demand as follows:

Single acting cylinder – Or spring return where the energy is stored by means of a compressed spring

Double acting cylinder – Energy is stored using a volume of compressed fluid

The type of actuation required depends upon the application, site facilities and also the physical space available although the majority of actuators used for shutdown valves are of the spring return type due to the fail safe nature of spring return systems.

Measuring Performance

For shutdown valves used in safety instrumented systems it is essential to know that the valve is capable of providing the required level of safety performance and that the valve will operate on demand.

The required level of performance is dictated by the Safety Integrity Level (SIL). In order to adhere to this level of performance it is necessary to test the valve. There are 2 types of testing methods available being

Proof test – A manual test that allows the operator to determine whether the valve is in the “as good as new” condition by testing for all possible failure modes and requires a plant shutdown

Diagnostic Test – An automated on-line test that will detect a percentage of the possible failure modes of the shutdown valve. An example of this for a shutdown valve would be a partial stroke test. An example of a mechanical partial stroke test device.
