What are the maintenance methods of ball valves?

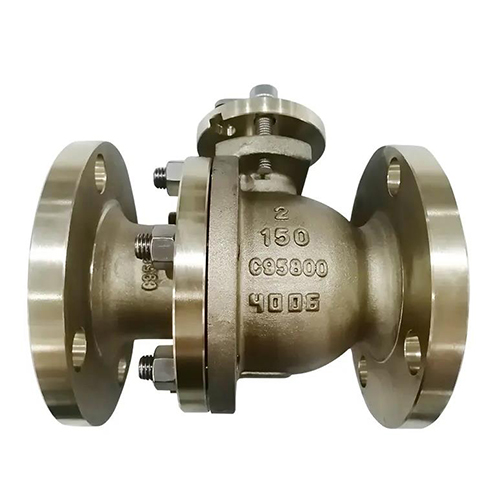

BALL VALVE

Ball valve maintenance methods mainly include the following steps:

First, fault diagnosis and preparation

1. Phenomenon observation: First observe the operating status of the ball valve, and pay attention to whether there is leakage, jammed or inflexible operation.

2. Preliminary inspection: Check the appearance of the ball valve to see if there is obvious damage or corrosion. At the same time, check whether the connecting parts of the valve and the operating mechanism are intact.

3. Tools: Prepare removal and maintenance tools based on the ball valve model and specifications, such as wrenches, screwdrivers, and Allen wrenches.

4. Turn off the fluid system: Before maintenance, ensure that the fluid system where the ball valve is located is closed, the pressure in the pipeline is released, and the actuator is separated from the support, and the power or air source is disconnected.

Second, disassembly and inspection

1. Remove connecting parts: Use appropriate tools to remove the connecting parts between the ball valve and the pipeline. Note the sequence and position of disassembly for subsequent reassembly.

2. Break down the ball valve: The ball valve is divided into various components, such as valve body, ball, seat, sealing ring, etc.

3. Check components:

- Inspect the ball, seat and seal for wear, damage or dirt.

- Check the stem for bending or excessive surface wear.

- Check that operating mechanisms such as handles or actuators are flexible and reliable.

Third, maintenance and replacement

1. Replace damaged parts: If the ball, seat, sealing ring or valve stem is found to be worn or damaged, it should be replaced in time. Replace the parts that meet the specifications to ensure good sealing performance.

2. Cleaning components: Use appropriate cleaners and tools to clean the dirt and impurities on the surface of each component. Ensure that the components are clean and smooth to ensure good sealing performance.

3. Adjustment and repair:

- If there is increased friction or poor lubrication between the stem and the valve body, check and adjust the clearance between the stem and the valve body to ensure good lubrication.

- If there are micro-leaks in the packing culvert, lock the valve stem nut, but be careful not to over-lock it.

Fourth, reassembly and testing

1. Reassembly: reassemble each component to the ball valve in the reverse order of disassembly. Make sure each component is properly installed and fits closely together. Tighten with specified torque values to avoid over-tightening or over-loosening.

2. Install the ball valve: Install the repaired ball valve to the predetermined position. Use appropriate tools and sealing materials to ensure that the connection between the ball valve and the pipe is well sealed and leak-free.

3. Check operation: After installation, manually operate the ball valve to ensure that the switch is flexible and the indication is accurate. At the same time, observe whether the ball valve is abnormal during the opening and closing process.

4. Tightness test: Close the ball valve and observe whether there is leakage at the connection between the valve and the pipeline. If there is leakage, the assembly should be re-checked and adjusted.

5. Functional testing: On the basis of ensuring good sealing, functional testing is carried out. According to the process flow of the system, the actual operating conditions are simulated to test whether the switching performance and adjusting performance of the ball valve meet the requirements.

Fifth, precautions

1. Follow the maintenance manual: When performing ball valve maintenance, be sure to follow the maintenance manual and guidance provided by the manufacturer. Do not arbitrarily change or omit the maintenance steps.

2. Pay attention to safe operation: During the maintenance process, pay attention to safe operation. In particular, the safety of personnel and equipment must be ensured during disassembly, cleaning, assembly and testing.

3. Record maintenance data: After the maintenance is completed, record the maintenance data in detail, including the replacement parts, maintenance process, test results, etc. These data are of great significance for subsequent troubleshooting and maintenance.

Through the above steps, the ball valve can be effectively maintained to ensure its normal operation and extend its service life. If you do not have maintenance skills or encounter complex problems, it is recommended to ask professional technicians to repair.
