When it comes to industrial fluid control systems, gate valves are indispensable components. This article explores gate valve parts, their functions, symbols, and key considerations when selecting a gate valve manufacturer or supplier, particularly in China, where high-quality products at competitive prices are widely available.
What is a Gate Valve
A gate valve is a linear-motion valve designed to fully open or close fluid flow in pipelines. It operates by lifting a rectangular or circular “gate” (a wedge-shaped disc) out of the path of the fluid. Known for their minimal pressure drop when fully open, gate valves are ideal for isolation applications in oil, gas, water, and chemical industries.
Gate Valve Symbol
In engineering schematics, the gate valve symbol is represented by a simple illustration: two triangles pointing toward each other with a vertical line separating them. This symbol helps engineers and technicians quickly identify valve types within complex piping systems.
Key Gate Valve Parts and Their Functions
Understanding gate valve parts is critical for maintenance and procurement. Below are the primary components:

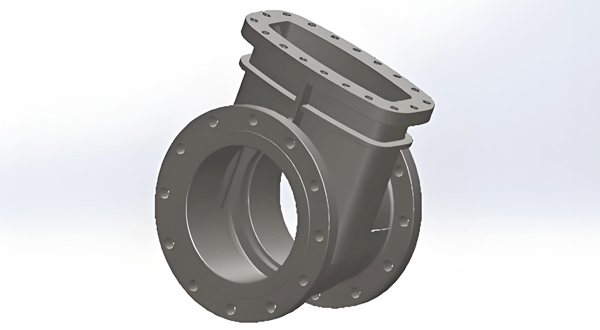

1. Body: The main structure housing internal parts, typically made of cast iron, stainless steel, or brass.
2. Bonnet: Attached to the body, it encloses the stem and provides a leak-proof seal.
3. Gate (Disc): The movable barrier that controls flow. Common types include wedge, knife, and parallel gates.
4. Stem: Connects the handwheel or actuator to the gate, transmitting motion to open/close the valve.
5. Seat: The sealing surface where the gate rests when closed, ensuring tight shut-off.
6. Packing: A gland seal around the stem to prevent fluid leakage.
7. Handwheel/Actuator: Manual or automated mechanism for valve operation.
Each part’s material and design impact durability, temperature tolerance, and compatibility with media (e.g., corrosive fluids).
Choosing a Reliable Gate Valve Manufacturer or Supplier
When sourcing gate valves, partnering with a reputable manufacturer or factory ensures product reliability. Here’s what to consider:
- Material Quality: Verify certifications (e.g., ASTM, ISO) for materials like stainless steel or carbon steel.
- Customization: Leading **suppliers** in **China** often offer tailored solutions for unique applications.
- Price: While China-based manufacturers provide cost-effective options, balance affordability with quality.
- Testing Standards: Ensure valves meet API, ANSI, or other industry standards.
Why Source Gate Valves from China
China dominates the global valve market due to its advanced manufacturing infrastructure and skilled workforce. Chinese **factories** combine precision engineering with competitive prices, making them a preferred choice for international buyers. Additionally, many suppliers offer comprehensive after-sales support, including spare gate valve parts.
Conclusion
From their core gate valve parts to their schematic representation via the gate valve symbol, these valves play a vital role in industrial systems. Whether you’re replacing components or procuring new valves, prioritize quality and partner with trusted manufacturers or suppliers—especially in China, where innovation meets affordability.
By understanding the intricacies of a gate valve, you can optimize performance, reduce downtime, and make cost-effective purchasing decisions.
