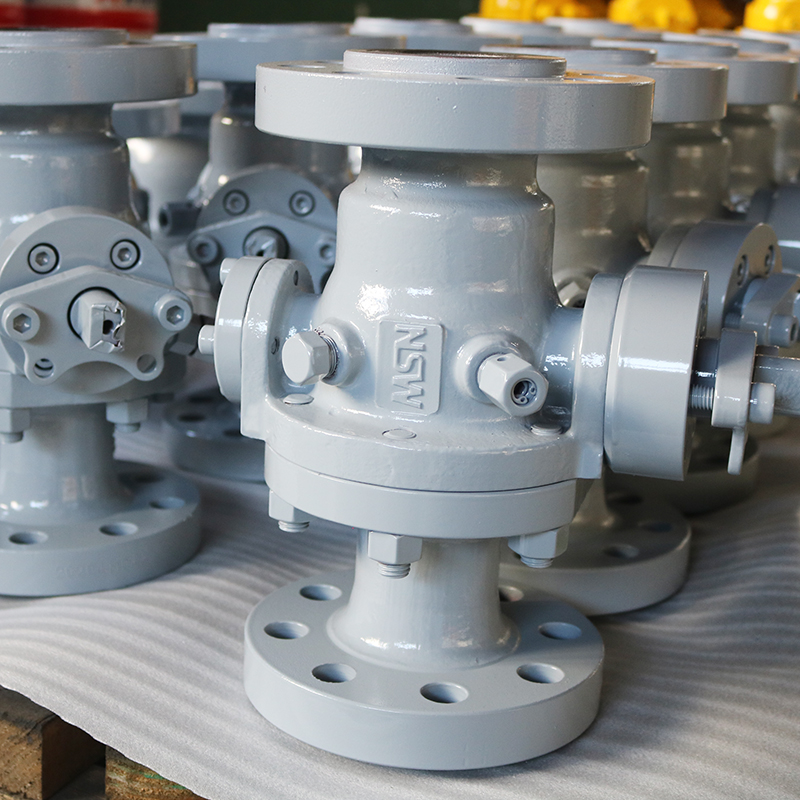

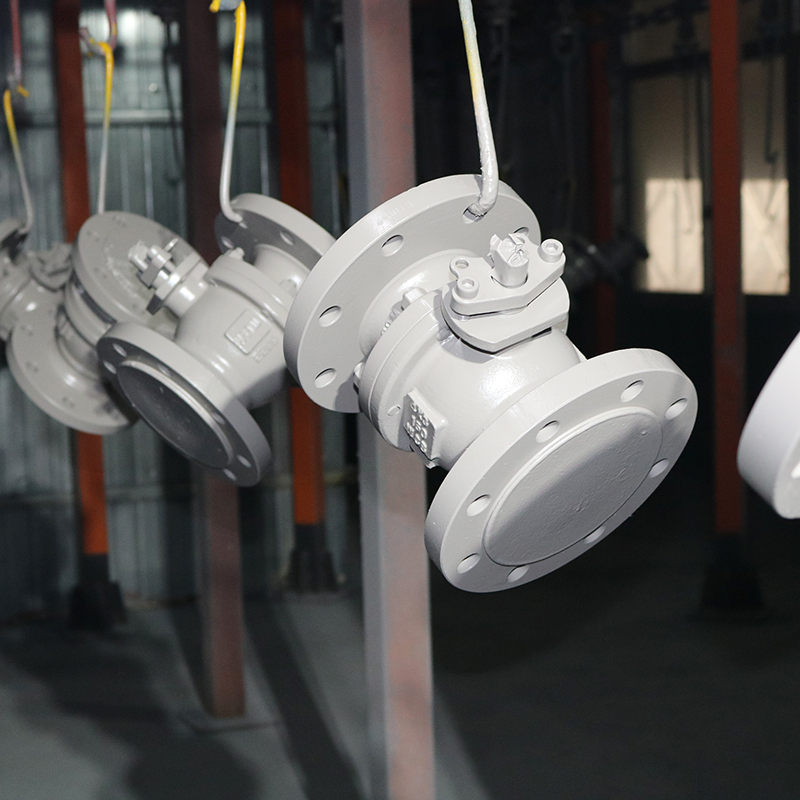

Flanged Ball Valve - Carbon Steel Ball Valve – Newsway

Key works: Carbon, Steel, Ball, Valve, Flanged, A216 WCB, LCB, WCC, class150, 300, 4A , 5A, 6A, PTFE,

PRODUCT RANGE:

Sizes: NPS 2 to NPS 48

Pressure Range: Class 150 to Class 2500

Flange Connection: RF, FF, RTJ

MATERIALS:

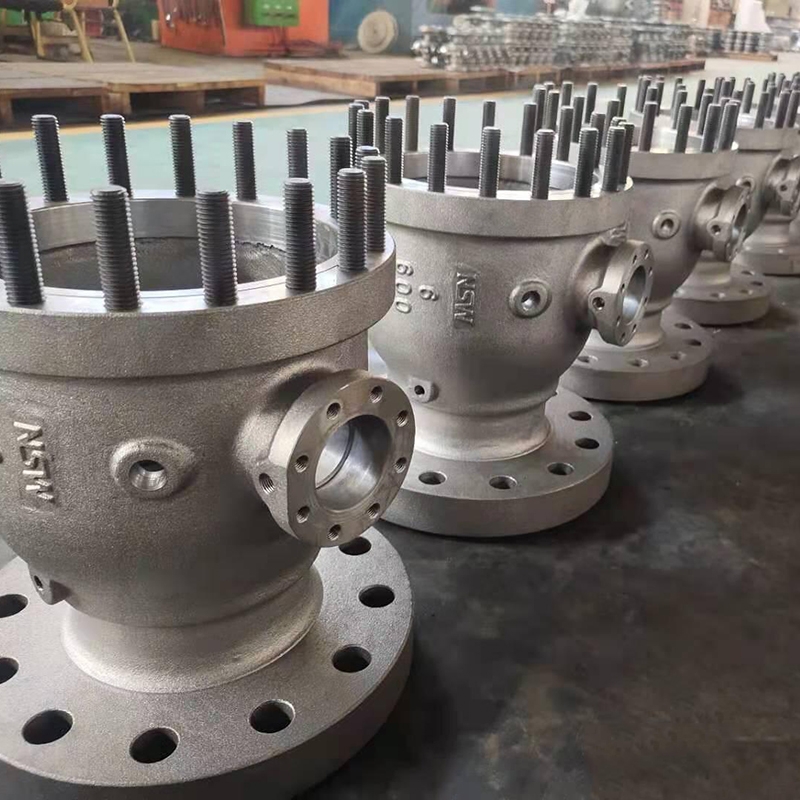

Casting: (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2) Monel, Inconel, Hastelloy,UB6

Forged (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5,)

STANDARD

Design Features:

1. Full or Reduced Bore

2. RF, RTJ, BW or PE

3. Side entry, top entry, or welded body design

4. Double Block & Bleed (DBB)，Double Isolation & Bleed (DIB)

5. Emergency seat and stem injection

6. Anti-Static Device

7.Anti-Blow out Stem

8. Cryogenic or High Temperature Extended Stem

Carbon Steel ball valve is a valve in which the opening and closing parts (ball) are driven by the valve stem and rotate around the axis of the valve stem. The ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline.

Ball valve is a widely used valve, it has the following advantages:

1. The fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length.

2. Simple structure, small size and light weight.

3. It is tight and reliable. The sealing surface of the ball valve is made of plastic widely, which has good sealing performance and has been widely used in vacuum systems.

4. Convenient operation, fast opening and closing, only need to rotate 90° from fully open to fully closed, which is convenient for remote control.

5. Convenient maintenance, simple structure of the ball valve, generally movable sealing ring, easy to disassemble and replace.

6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.

7. It has a wide range of applications, with a diameter ranging from a few millimeters to a few meters, and can be applied from high vacuum to high pressure.

If you need more details about valves please contact NSW(newsway valve) sales department

Newsway Valves Materials

NSW valve body and trim material can be offered in Forged type and Casting type. Next to stainless and carbon steel material, we also manufacture valves in special materials such as titanium, nickel alloys, HASTELLOY®*, INCOLOY®, MONEL®, Alloy 20, super-duplex, corrosion resistant alloys and urea grade materials.

Available materials
