Emergency Shut Down Valves（ESDV）

What is a ESDVs

Emergency Shutdown Valves all have the function of quick shut-off, with simple structure, sensitive response, and reliable action. It can be widely applied in industrial production sectors such as petroleum, chemical, and metallurgy. The air source of the pneumatic cut-off valve requires filtered compressed air, and the medium flowing through the valve body should be a liquid and gas without impurities and particles. Classification of pneumatic shut-off valves: ordinary pneumatic shut-off valves, quick emergency pneumatic shut-off valves.

Performance Parameter of ESDV

The pneumatic cut-off valve adopts a soft sealing structure, designed with working sealing and maintenance sealing, with small operating torque, moderate sealing pressure ratio, reliable sealing, sensitive action, easy hydraulic control to achieve automatic control, and long service life. Pneumatic cut-off ball valves are widely used in industries such as petroleum, chemical, metallurgy, papermaking, pharmaceuticals, electroplating, etc.

1. Working pressure: 1.6Mpa to 42.0Mpa;

2. Working temperature: -196+650 ℃;

3. Driving methods: manual, worm gear, pneumatic, electric;

4. Connection methods: internal thread, external thread, flange, welding, butt welding, socket welding, sleeve, clamp;

5. Manufacturing standards: National standard GB JB、HG， American standard API ANSI， British Standard BS, Japanese JIS JPI, etc;

6. Valve body material: copper, cast iron, cast steel, carbon steel WCB、WC6、WC9、20#、25#、 Forged steel A105、F11、F22、 Stainless steel, 304, 304L, 316, 316L, chromium molybdenum steel, low-temperature steel, titanium alloy steel, etc.

The Pneumatic Actuator type of ESDV (Emergency Shutdown Valves)

The Pneumatic Actuator of Emergency Shutdown Valve adopts Scotch Yoke type, Gear Rack type, Piston type, and Diaphragm, with double acting and spring return (single acting).

1. Gear type double piston, with large output torque and small volume;

2. The cylinder is made of aluminum material, which is lightweight and has a beautiful appearance;

3. Manual operating mechanisms can be installed at the top and bottom;

4. The rack and pinion connection can adjust the opening angle and rated flow rate;

5. Optional live signal feedback indication and various accessories for actuators to achieve automated operation;

6 The IS05211 standard connection provides convenience for product installation and replacement;

7. The adjustable screws at both ends allow standard products to have an adjustable range of ± 4 ° between 0 ° and 90 °. Ensure synchronization accuracy with the valve.

Newsway Valves Materials

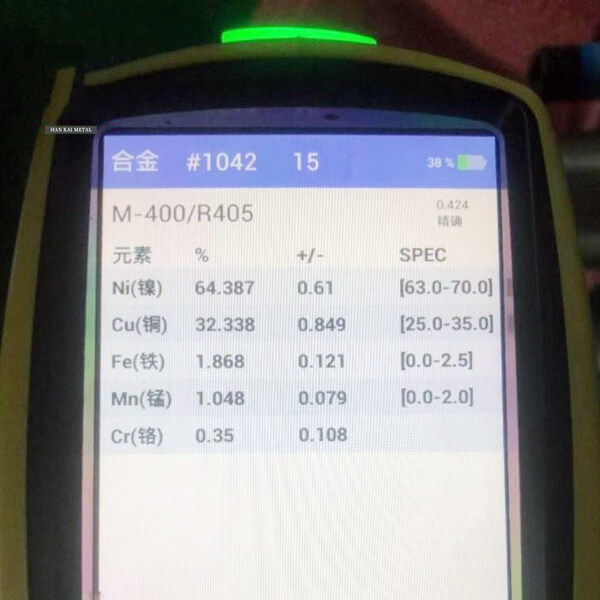

NSW valve body and trim material can be offered in Forged type and Casting type. Next to stainless and carbon steel material, we also manufacture valves in special materials such as titanium, nickel alloys, HASTELLOY®*, INCOLOY®, MONEL®, Alloy 20, super-duplex, corrosion resistant alloys and urea grade materials.

Available materials
