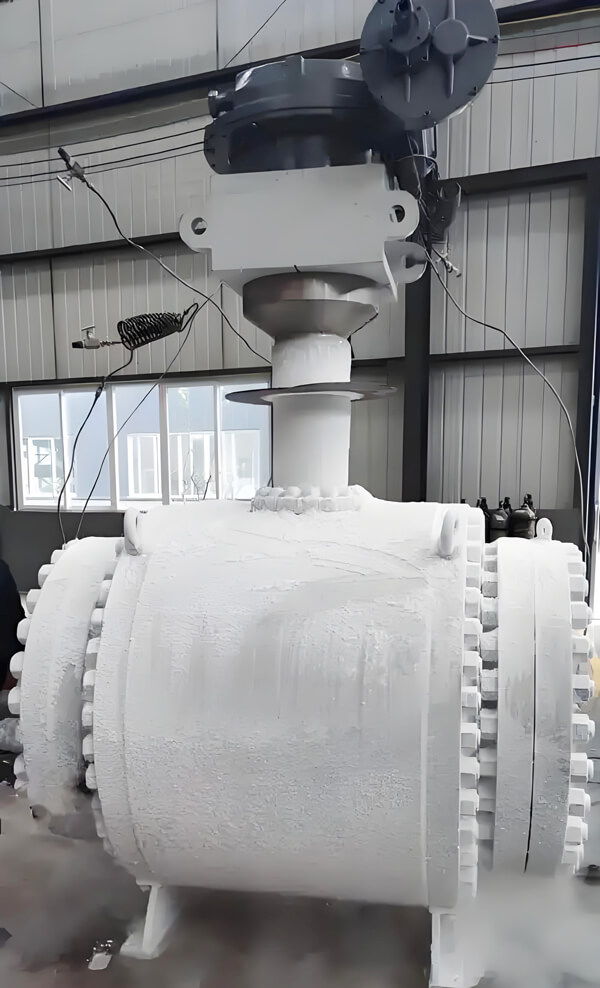

Cryogenic Ball Valve

Cryogenic Ball Valve

Key works: cryogenic, ball, valve, low, temperature, flange, LCC.

PRODUCT RANGE:

Sizes: NPS 1/2″~NPS 12″

Pressure Range: CL150~CL2500

Temperature :-40℃ to -196℃

MATERIALS:

LCB､LCC､LC3､CF8､CF8M､CF3､CF3, LF2､F304､F316､F304L､F316Letc.

Drive device: handle, worm wheel, electric, pneumatic, pneumatic- hydraulic, electro-hydraulic

STANDARD

Design Features:

1.Side entry

2.Full bore / Reduce bore

3.Double block and bleed

4.Blowout-proof stem

5.Anti-static design

6.Fire safe design

7.Sealant injection at seat and stem

8.Zero leakage

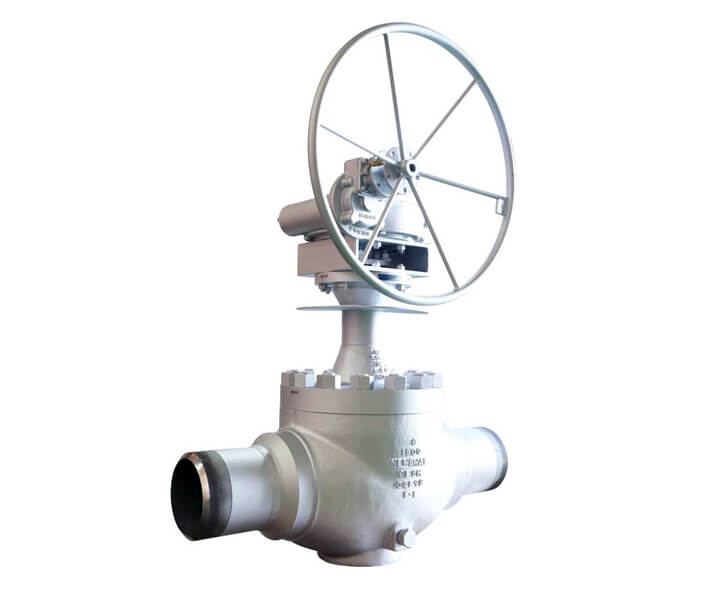

9.Extended bonnet

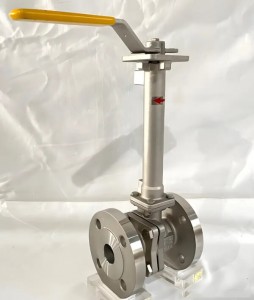

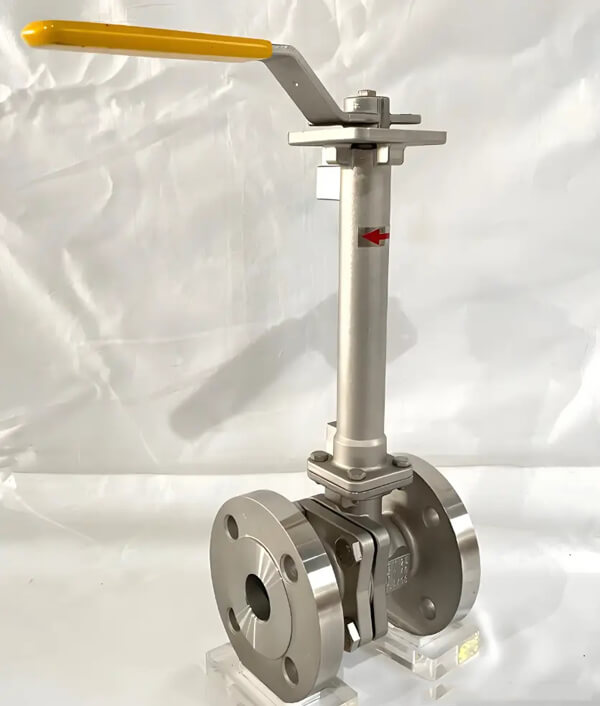

Newsway Valve Cryogenic ball valve is a kind of valve that is mainly for ethylene, liquefied natural gas and other chemical device. It’s mainly divided into cryogenic floating ball valve and cryogenic standing ball valve.
Long-necked structure is not usually applied for temperature above -50℃, and applied for temperature below -50℃. It aims to protect the stuffing box. Locate stuffing box far away from low temperature. To guarantee sealing effect of the stuffing, cold insulation material also can be wound to prevent loss of cold energy. it’s a kind of valve that mainly for ethylene, liquefied natural gas and other chemical device.

Cryogenic Ball Valve

If you need more details about valves please contact NSW(newsway valve) sales department

Newsway Valves Materials

NSW valve body and trim material can be offered in Forged type and Casting type. Next to stainless and carbon steel material, we also manufacture valves in special materials such as titanium, nickel alloys, HASTELLOY®*, INCOLOY®, MONEL®, Alloy 20, super-duplex, corrosion resistant alloys and urea grade materials.

Available materials
