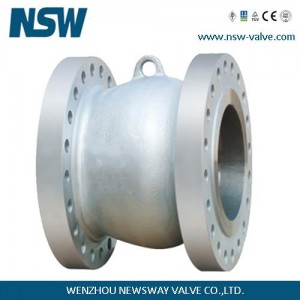

Axial Flow Check Valve

Short Description:

Axial Flow Check Valve Axial flow Streamlined flow path through full-port expanded body avoids turbulence and prevents erosion and vibration. Process downtime and maintenance costs are eliminated. Intelligent use of venture results in static and dynamic performance, axial flow check valve has become the preferred choice for special applications. Design Valve design to API 6D/ASME B16.34. All valves are available with any international flange standard. Low pressure drop The full opening flow p...


Product Detail

Materials

Product Tags

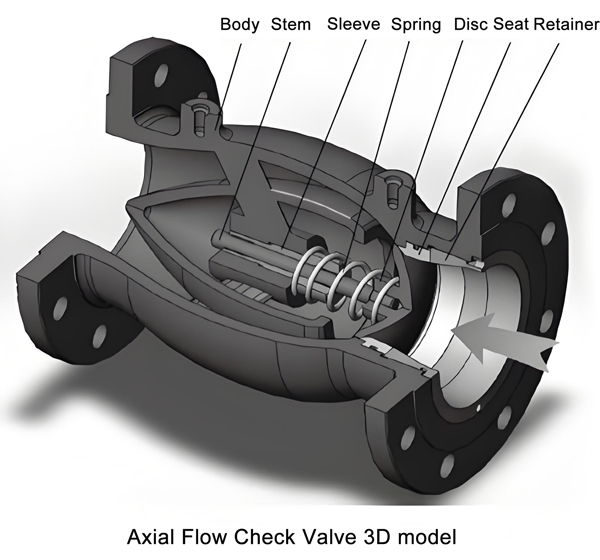

Axial Flow Check Valve

Axial flow

Streamlined flow path through full-port expanded body avoids turbulence and prevents erosion and vibration. Process downtime and maintenance costs are eliminated. Intelligent use of venture results in static and dynamic performance, axial flow check valve has become the preferred choice for special applications.

Design

Valve design to API 6D/ASME B16.34.

All valves are available with any international flange standard.

Low pressure drop

The full opening flow passage and high-pressure recovery of the venturi-shaped body result in very low pressure loss: reduced operating cost of pumps and compressors.

Horizontal/Vertical installation

Unlike most traditional swing check valves, NEWSWAY VALVE COMPANY axial check valves are ideal for both horizontal and vertical pipeline installation.

Maintenance Free

The NEWSWAY VALVE COMPANY Axial Flow Check Valve designs use no soft parts and therefore inherently fire-safe. Various other non-return valve designs rely on external devices like counterweights and slam retarders to operate satisfactorily. Those do not allow buried installation, are space consuming and require regular maintenance. The NEWSWAY VALVE COMPANY Axial Flow Check Valve can be buried or installed in locations where space or weight is at a premium. The NEWSWAY VALVE COMPANY Axial Flow Check Valve normally does not require maintenance.


  • Previous:
  • Next:

  • Newsway Valves Materials

    NSW valve body and trim material can be offered in Forged type and Casting type. Next to stainless and carbon steel material, we also manufacture valves in special materials such as titanium, nickel alloys, HASTELLOY®*, INCOLOY®, MONEL®, Alloy 20, super-duplex, corrosion resistant alloys and urea grade materials.

    Available materials

    Tradename UNS nr. Werkstoff nr. Forging Casting
    Carbon steel K30504 1.0402 A105 A216 WCB
    Carbon steel   1.046 A105N
    Low Temp Carbon steel K03011 1.0508 A350 LF2 A352 LCB
    High Yield steel K03014   A694 F60
    3 1/2 Nickel steel K32025 1.5639 A350 LF3 A352 LC3
    5 Chrome, 1/2 Moly K41545 1.7362 A182 F5 A217 C5
    1 1/4 Chrome, 1/2 Moly K11572 1.7733 A182 F11 A217 WC6
      K11597 1.7335
    2 1/4 Chrome, 1/2 Moly K21590 1.738 A182 F22 A217 WC9
    9 Chrome, 1 Moly K90941 1.7386 A182 F9 A217 CW6
    X 12 Chrome, 091 Moly K91560 1.4903 A182 F91 A217 C12
    13 Chrome S41000   A182 F6A A351 CA15
    17-4PH S17400 1.4542 A564 630
    254 SMo S31254 1.4547 A182 F44 A351 CK3MCuN
    304 S30400 1.4301 A182 F304 A351 CF8
    304L S30403 1.4306 A182 F304L A351 CF3
    310S S31008 1.4845 A182 F310S A351 CK20
    316 S31600 1.4401 A182 F316 A351 CF8M
      S31600 1.4436
    316L S31603 1.4404 A182 F316L A351 CF3M
    316Ti S31635 1.4571 A182 F316Ti
    317L S31703 1.4438 A182 F317L A351CG8M
    321 S32100 1.4541 A182 F321
    321H S32109 1.4878 A182 F321H
    347 S34700 1.455 A182 F347 A351 CF8C
    347H S34709 1.4961 A182 F347H
    410 S41000 1.4006 A182 F410
    904L N08904 1.4539 A182 F904L
    Carpenter 20 N08020 2.466 B462 N08020 A351 CN7M
    Duplex 4462 S31803 1.4462 A182 F51 A890 Gr 4A
    SAF 2507 S32750 1.4469 A182 F53 A890 Gr 6A
    Zeron 100 S32760 1.4501 A182 F55 A351 GR CD3MWCuN
    Ferralium® 255 S32550 1.4507 A182 F61
    Nicrofer 5923 hMo N06059 2.4605 B462 N06059
    Nickel 200 N02200 2.4066 B564 N02200
    Nickel 201 N02201 2.4068 B564 N02201
    Monel® 400 N04400 2.436 B564 N04400 A494 M35-1
    Monel® K500 N05500 2.4375 B865 N05500
    Incoloy® 800 N08800 1.4876 B564 N08800
    Incoloy® 800H N08810 1.4958 B564 N08810
    Incoloy® 800HT N08811 1.4959 B564 N08811
    Incoloy® 825 N08825 2.4858 B564 N08825
    Inconel® 600 N06600 2.4816 B564 N06600 A494 CY40
    Inconel® 625 N06625 2.4856 B564 N06625 A494 CW 6MC
    Hastelloy® B2 N10665 2.4617 B564 N10665 A494 N 12MV
    Hastelloy® B3 N10675 2.46 B564 N10675
    Hastelloy® C22 N06022 2.4602 B574 N06022 A494 CX2MW
    Hastelloy® C276 N10276 2.4819 B564 N10276
    Hastelloy® C4 N06455 2.461 B574 N06455
    Titanium GR. 1 R50250 3.7025 B381 F1 B367 C1
    Titanium GR. 2 R50400 3.7035 B381 F2 B367 C2
    Titanium GR. 3 R50550 3.7055 B381 F3 B367 C3
    Titanium GR. 5 R56400 3.7165 B381 F5 B367 C5
    Titanium GR. 7 R52400 3.7235 B381 F7 B367 C7
    Titanium GR. 12 R53400 3.7225 B381 F12 B367 C12
    Zirconium® 702 R60702   B493 R60702
    Zirconium® 705 R60705   B493 R60705
